JGSFEM (Executed)

Fempa en Alicante

Javier García-Solera Vera

2003 - 2006

Photography

Joan Roig

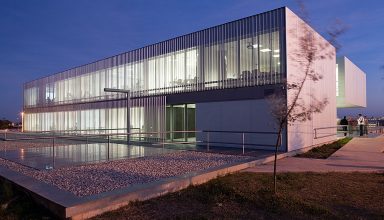

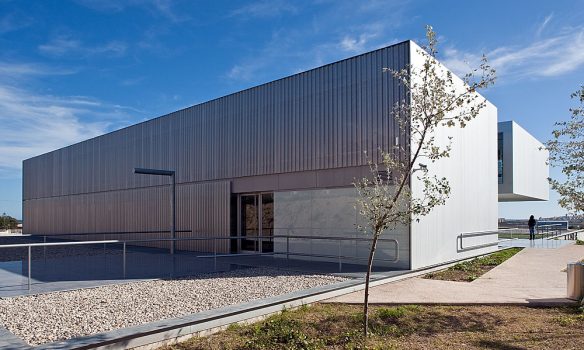

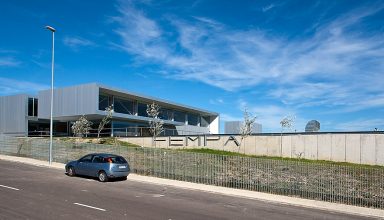

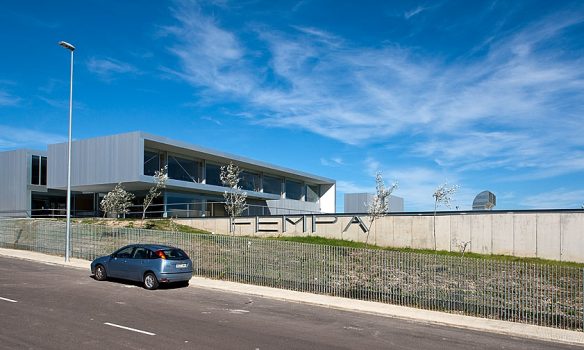

Taking advantage of the sharp slope between the opposite edges of the plot, six half-buried industrial warehouses are configured, all of the same length, but widths corresponding to each of the uses that will incorporate, and occupying the rectangular plot. Between each one of the volumes, a band of separation allows the entrance of light and the provision of an intermediate technical level necessary because of the greater height of the warehouses. The access and technical supply is produced from the lower level, reserving the upper access for the office volume.

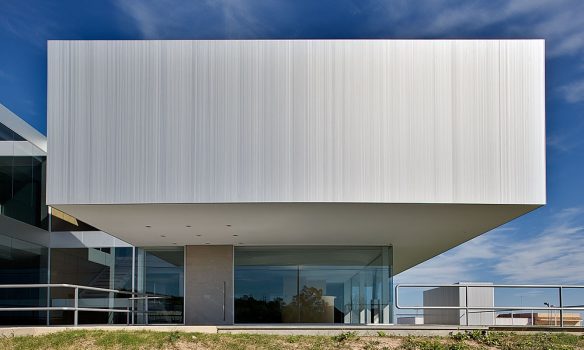

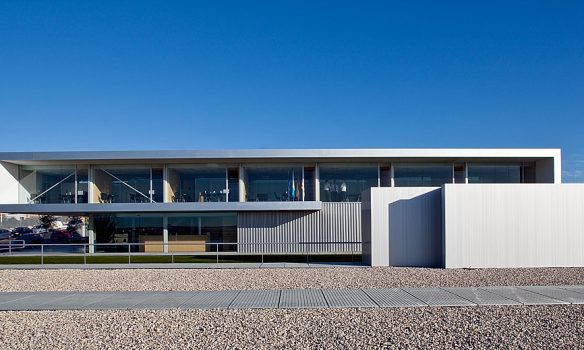

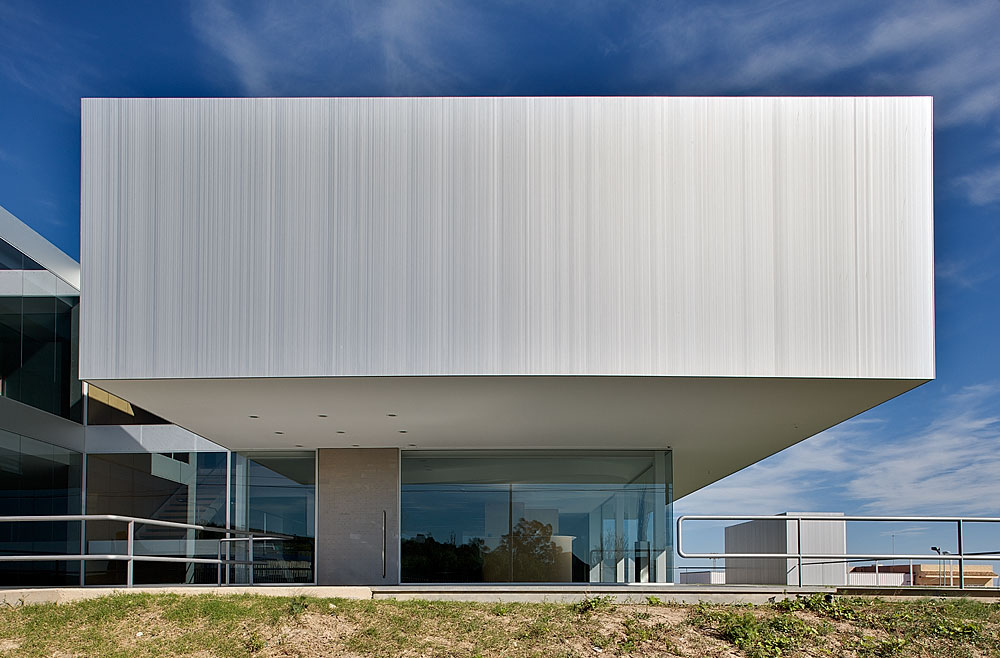

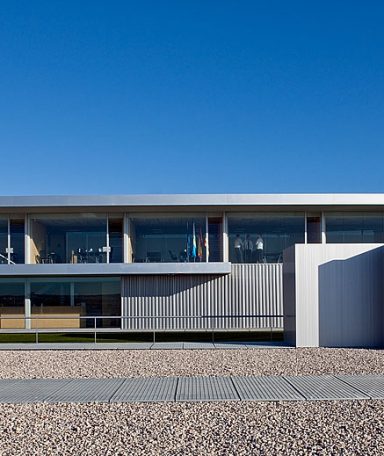

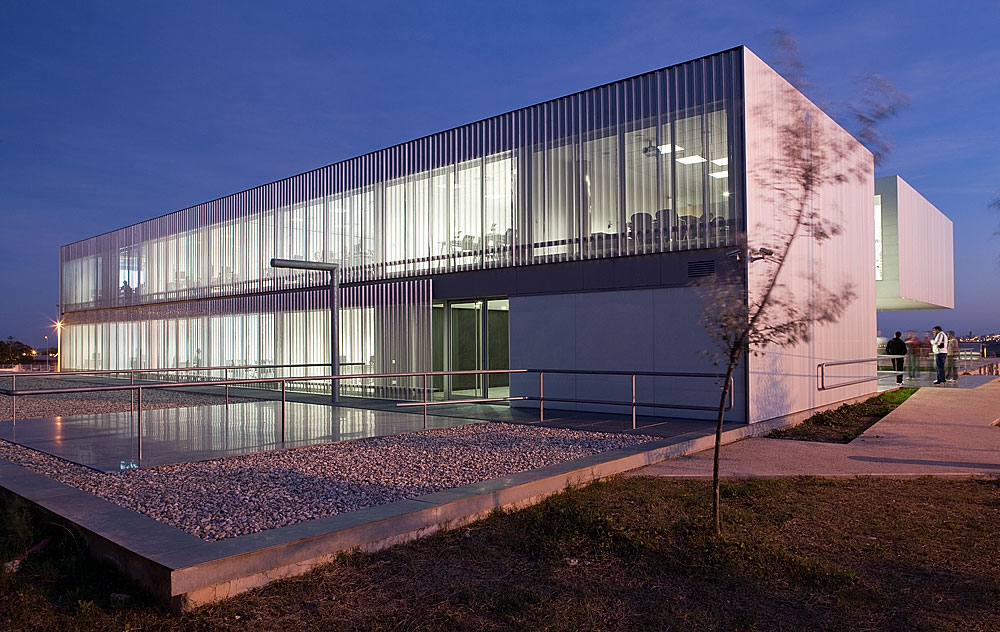

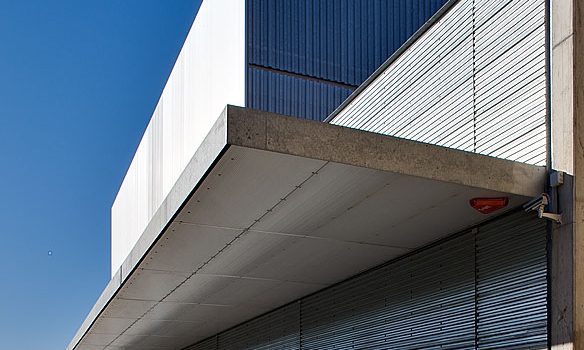

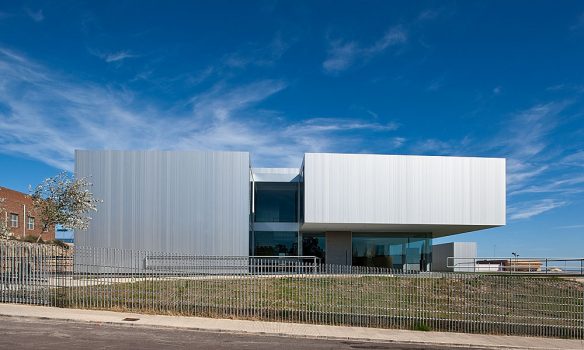

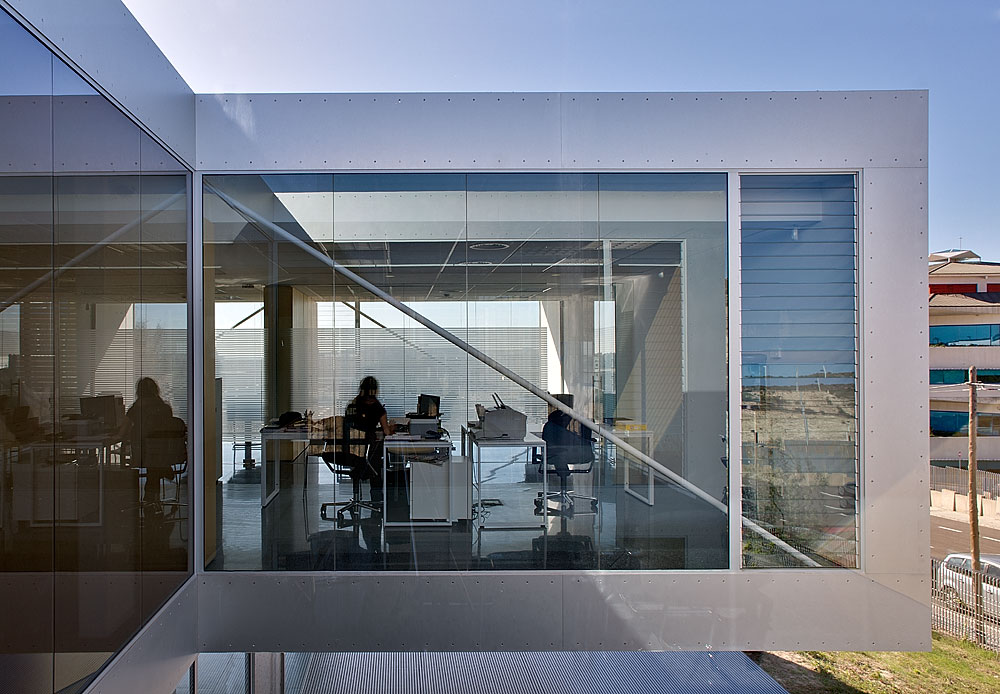

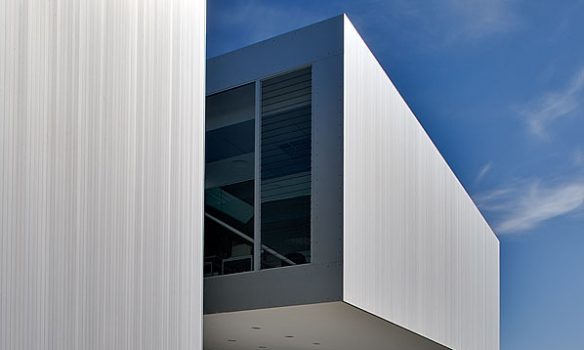

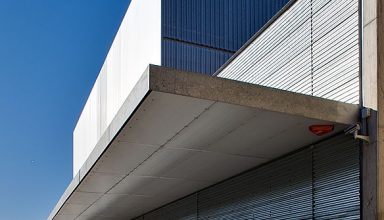

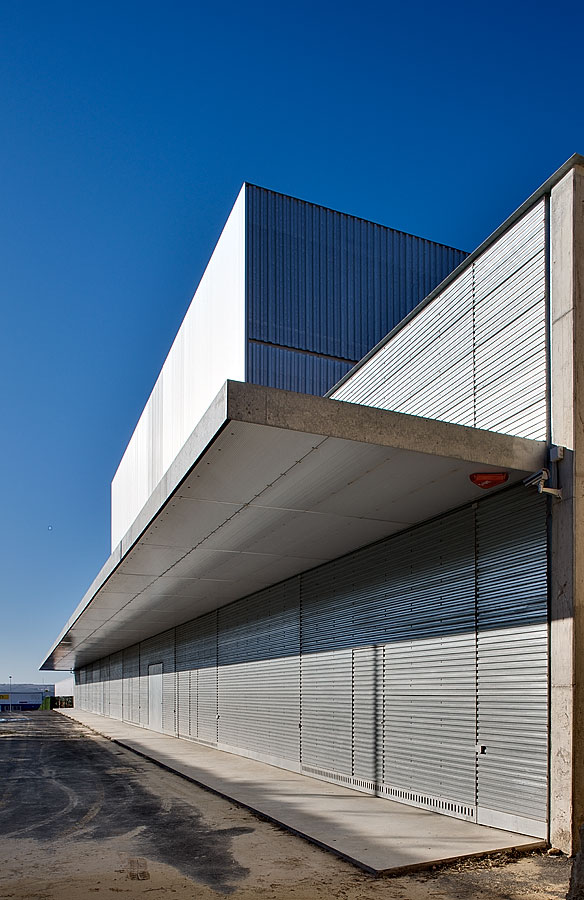

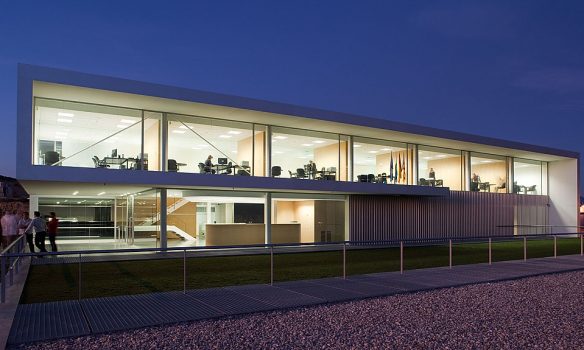

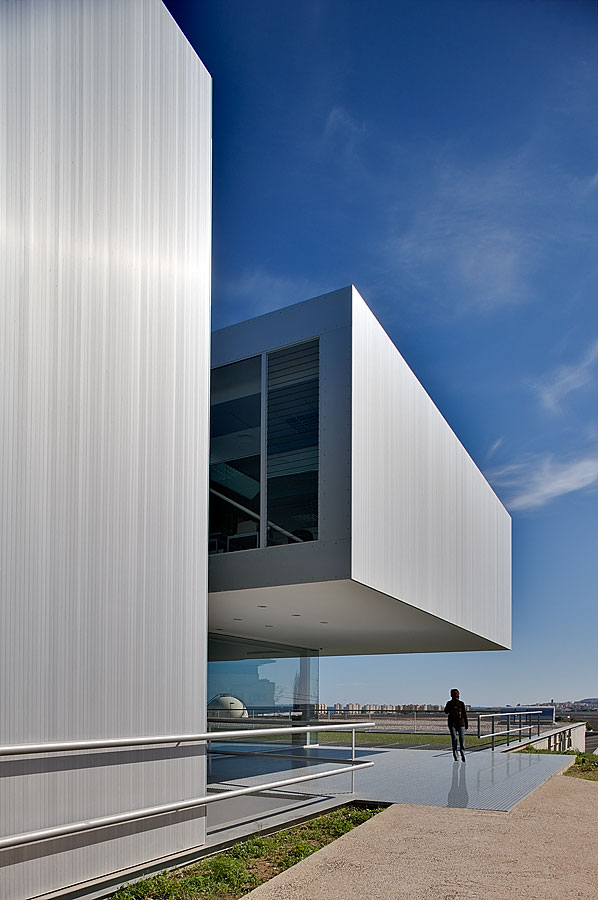

Only two of the six warehouses emerge above the ground level, which serves as the roof of the four lower buildings, forming the office building. The two upper industrial volumes also reserve an intermediate band of separation, which houses the server elements and the vertical and horizontal communication. The entrance is reflected by the structural gesture of leaving the last span in cantilever towards the façade.

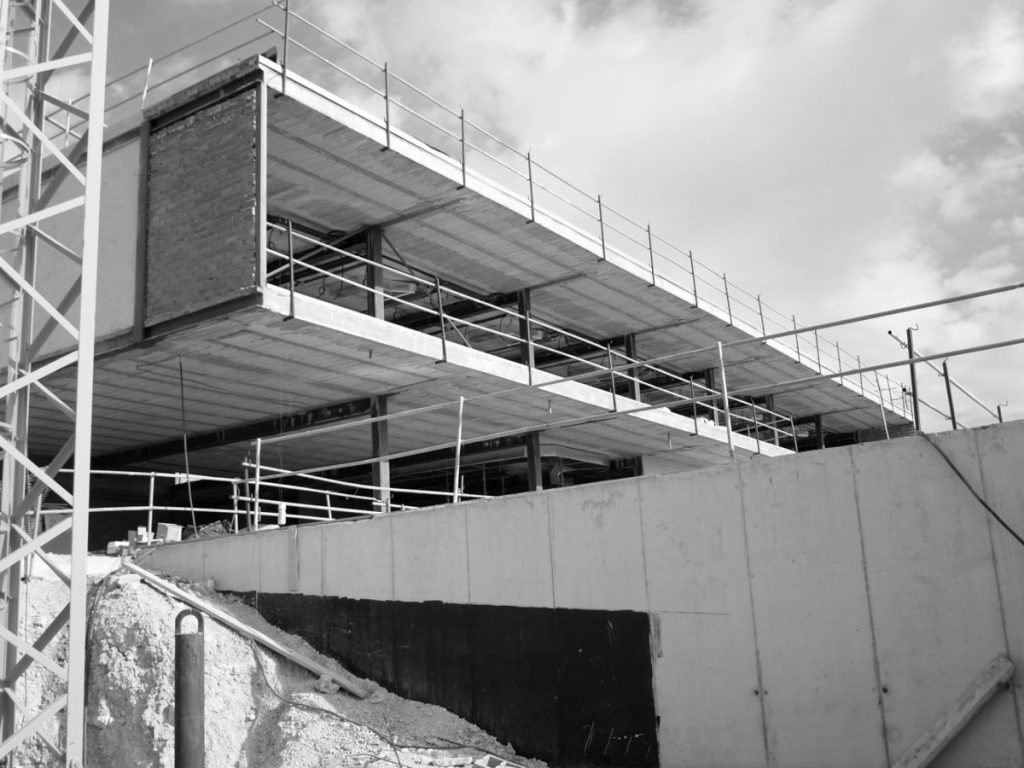

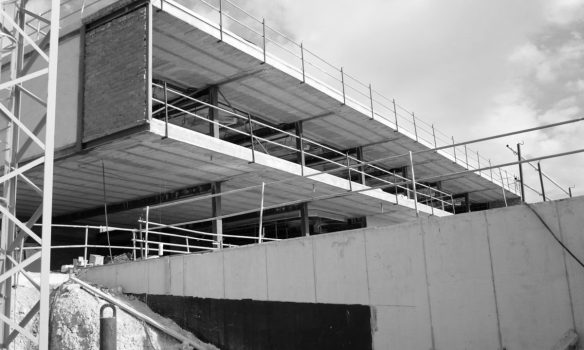

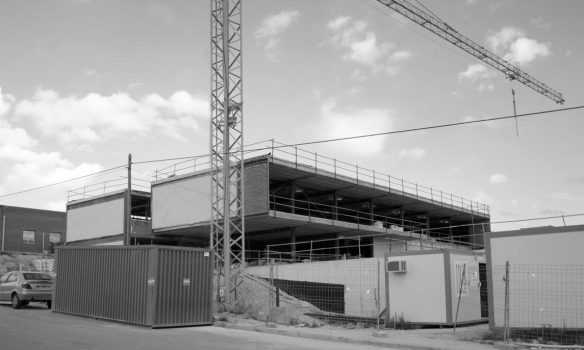

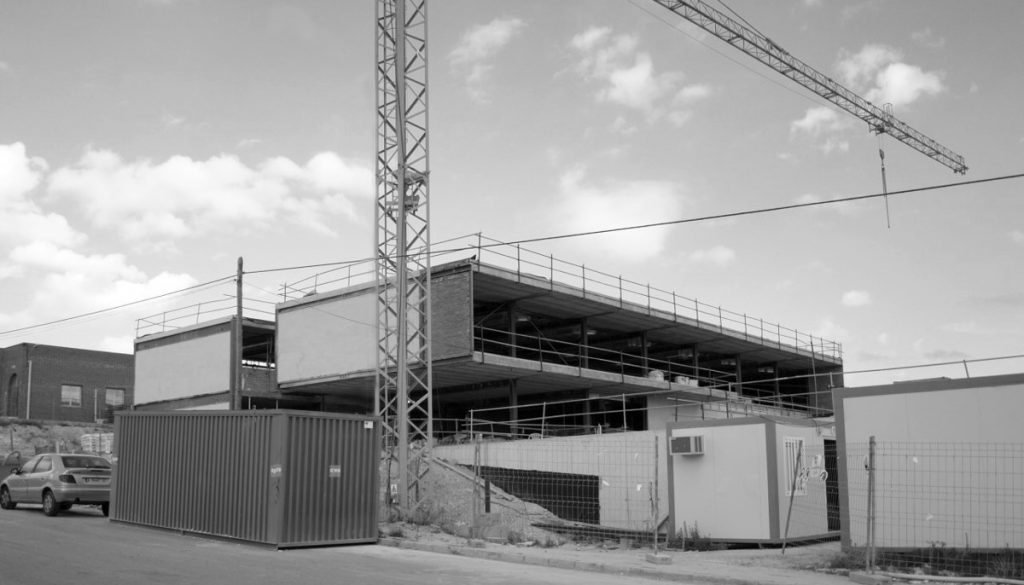

The simple structure consists of semi-joists decks supported on the lower wing of the double-girder T-beams of steel, with a rigorous modulation of 5m.

JGSFEM_F01
JGSFEM_F02
JGSFEM_F03
JGSFEM_F04
JGSFEM_F05
JGSFEM_F06

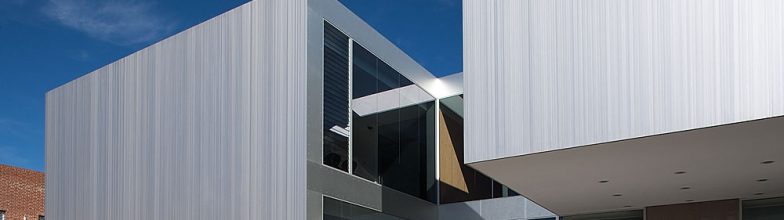

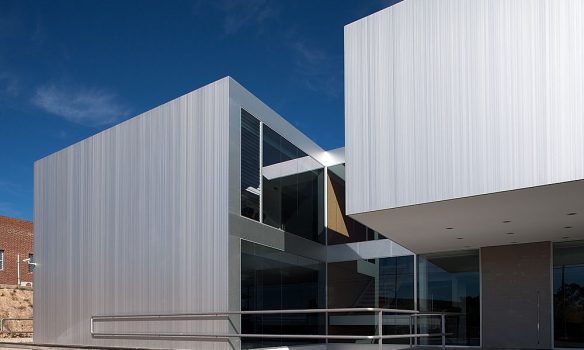

JGSFEM_F07
JGSFEM_F08

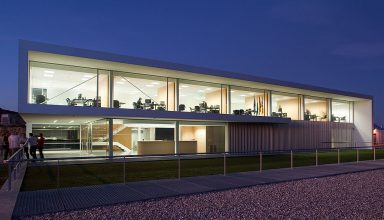

JGSFEM_F09

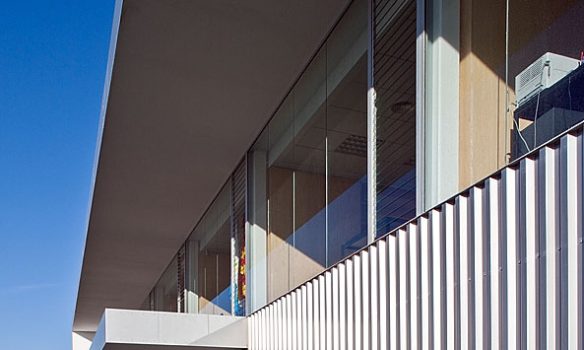

JGSFEM_F10
JGSFEM_F11

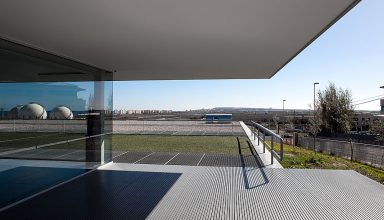

JGSFEM_F12
JGSFEM_F13
JGSFEM_F14
JGSFEM_F15
JGSFEM_F16
JGSFEM_F17

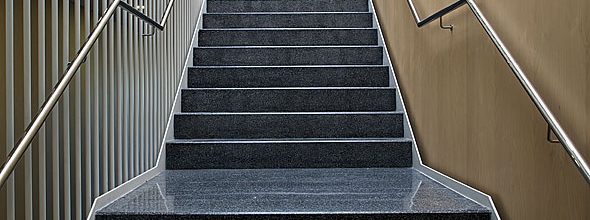

JGSFEM_F18

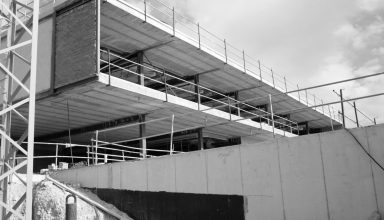

JGSFEM_C01

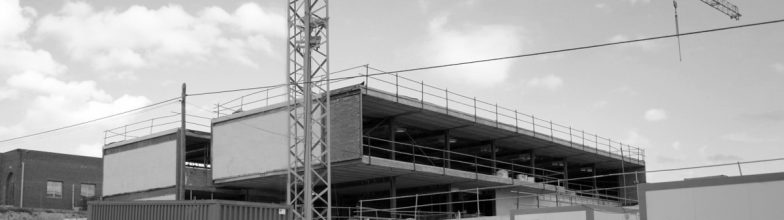

JGSFEM_C02
